Portable Gauging & Sampling Solutions
Portable Cargo Measuring System
ENRAF TANKSYSTEM SA is the world’s leading supplier of portable level gauging and sampling equipment.
Honeywell Tanksystem has supplied equipment for more than 7,500 tankers, barges and tank farms. With headquarters in Switzerland since 1985, Honeywell Tanksystem has a network of over 40 agents and 19 service stations worldwide.
- Our goal is to build up a long-term relationship with our customers and to put their needs in the centre of all our activities.
- All our equipment is intrinsically safe and manufactured for use in classified hazardous environments (Zone 0) onboard vessels. (IMO, API, ISO, AP, EMC, ATEX, MED, USCG, MSA, All major classification societies)
- As an ISO 9001 certified company, we are dedicated to fulfilling the needs of customers who operate in classified areas according to high standards regarding safety, reliability and accuracy.
Person in charge
- Sales 2 Team
- Dexter Yoo / Simon Kim
- T. 82.51.462.2555
- M. sd@worldocean.co.kr
The HERMetic UTImeter Gtex is a portable gas tight liquid level gauge designed for closed gauging of hydrocarbons and chemicals. The unit is used for custody transfer, inventory control measurement and free water detection on marine vessels and shore tanks. Connected to a HERMetic vapour control valve fixed on the tank, the HERMetic UTImeter Gtex avoids any gas release during operation.
The HERMetic UTImeter Rtex. Is a portable liquid level gauge designed for restricted gauging of petroleum products. The unit is used for custody transfer, inventory control measurement and free water detection on marine vessels and shore tanks. The HERMetic UTImeter Rtex has to be connected to a HERMetic vapour control valve fixed on the tank.
All HERMetic UTImeter’s are now equipped with the sensor “ ULTRA “ for use in low and high viscous liquids.The ULTRA sensing probe consists of a stainless steel tube terminated by a PEEK head. The sensing probe includes an ultrasonic liquid level sensor, a temperature sensor and a conductivity electrode. The sensitivity for ullage and interface measurement does not require any adjustment. Therefore changing a sensor or a tape does not require a new calibration.
A 500 mm long graduated DIP rod, designed for easy penetration of sediments in tank bottom, is attached to a 30 metres. Long stainless steel tape, which is coiled on a reel graduated in combined metric and English unit.

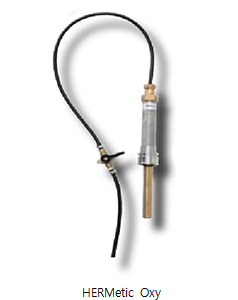

As per IMO requirement on Tanker Safety and Pollution Prevention, oxygen level shall be determined before start of crude oil washing. The HERMetic OXY samples inert gas (or any other gas) over full tank height without escape of gas to the atmosphere.* IMO requirements on Tanker Safety and Pollution Prevention, 1978 – resolution 15 :Annex 6.6 : Before each tank is crude oil washed, the oxygen level shall be determined at a point 1 meter from the deck and at the middle region of the ullage space and neither of these determinations shall exceed 8 percent by volume.
Tanker operation requires verification of tank pressure without potential for error due to signal conversion or remote transmission. This rugged high precision gauge provides reliable reading within the range of 1500mm vacuum and 2500mm pressure.

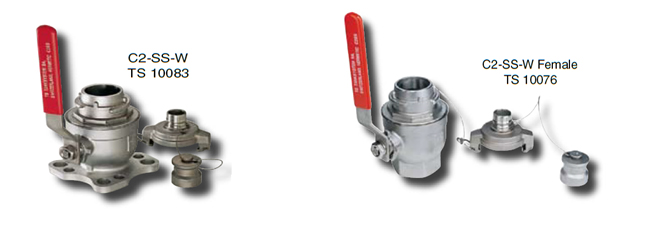

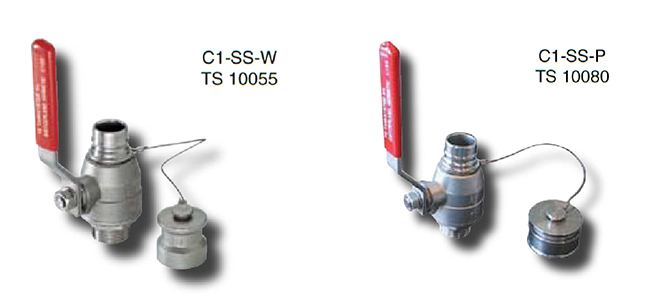

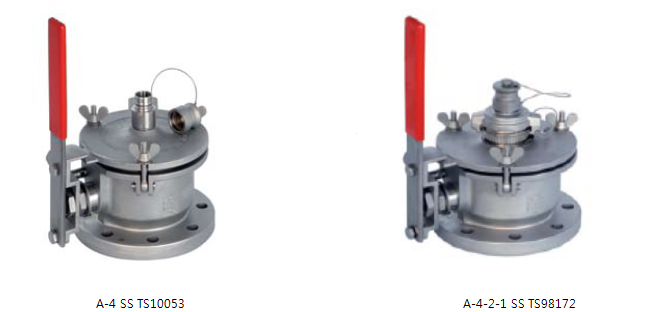

Storage tubes and adapters for HERMetic equipment (gauges and Samplers) designed for connection on existing non-Tanksystem valves on board.
Honywell Marine can deliver most of its gauges and samplers with the suitable adaptor to fit on already installed valves
